Servo Driven 8-10 PCs Sanitary Napkin Premade Pouch Automatic Bagging Sealing Machine

Servo Driven 8-10 PCs Sanitary Napkin Premade Pouch Automatic Bagging Sealing Machine

Marchio:	Sayok
Numero di modello:	SN-350ZD
MOQ:	1 insieme
prezzo:	EXW US$12598 -14960/set
Termini di pagamento:	T/T, L/C
Capacità di fornitura:	50 insieme /month

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

Nome della macchina:

Confezionatrice automatica per sigillatura insaccamento

Industrie applicabili:

Assorbente igienico, assorbente, macchina confezionatrice per sacchetti prefabbricati per pannolini

Funzione:

Alimentazione, apertura, riempimento e sigillatura automatica dei sacchetti

Controllore:

Servomotore + HMI

Tipo di tenuta:

Sigillatura con filiera a temperatura controllata

Borsa da cabina:

Ampia cabina con 200 bagagli

Garanzia:

1 anno per le parti elettriche principali

Imballaggi particolari:

Cassa di legno esportata

Descrizione del prodotto

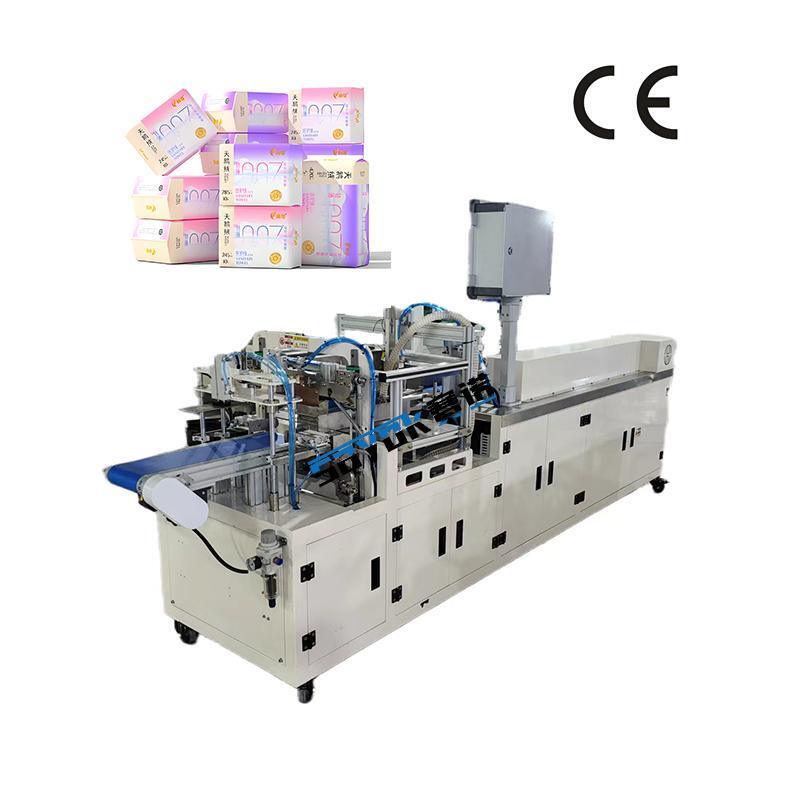

Servo Driven 8-10 PCs Sanitary Napkin Premade Pouch Automatic Bagging Sealing Machine

This automatic bagging and sealing machine is specially designed for the packaging of stacked sanitary pads, diapers etc products featuring stable operation, high packaging efficiency and excellent finished product effect. It adopts a temperature-controlled die head sealing system to ensure firm, flat and neat sealing edges without bag breaking or air leakage, realizing reliable and standardized packaging.

The machine supports semi-automatic operation with manual feeding of 6-10 sanitary pads per stack. The stacked products are conveyed by a buffer conveyor to the sensor detection position, which accurately positions the materials and aligns them with the bag inlet. Equipped with an automatic vacuum bag picking and opening mechanism, the equipment can automatically complete bag suction and opening. After the material pusher pushes the stacked sanitary pads into the opened pouch, the machine performs automatic sealing to finish the whole packaging process.

With a high degree of automation, this equipment greatly reduces manual operation intensity and improves packaging consistency. It supports flexible function upgrading; an automatic feeding device can be additionally installed as required to upgrade the semi-automatic unit into a fully automatic continuous packaging production line, meeting diversified production demands for small-batch trial production and large-scale mass production. It is an ideal packaging equipment for sanitary pad manufacturing enterprises.

Quick Details:

1. Specially designed for sanitary pads, sanitary napkins, and baby diapers.

2. Adopts PLC + servo motors to control the pusher, which is better to prevent the pouches from breaking..

3. It adopts a temperature-controlled die head sealing system for more procisely control the sealing temperature.

4. Automatic bag feeding and opening, which is more efficient and cost saving.

5. It adopts cutter trimming mechanism to trim leftover edges and keep the bag mouth flat and tidy.

6. The cutter is made of high-hardness D2 steel for greatly extended service life.

7. Packaging angle formed by mold suction; customized molds available per product specification

8. Very simple in changing molds, no need too many adjustments.

Specifications:

Model	SN-350ZD
Servo Motor Power	0.75KW, 400W
Packing Speed	15-30 bags/min (depends on product and feeding speed)
Fan Power	1KW
Power Supply	220v 50/60hz
Air Source	0.6-0.8MPa
Working Temperature	100 - 200 degree
Packed size	L:120-280mm W:80-100 mm L:50-90mm
Machine size	31508001400mm
Machine Weght	Approx 500kg

Machine Details:

1. Packaging machine appearance It can realize the one-step process of material release, packaging and sealing and cutting
2.Automatic bag making Roll film on the machine, automatic bag-making edge sealing beautiful, sticky bags seamless.
3. Multi-functional customized mechanical devices enjoy quality service
4.Intelligent pushing The product is automatically pushed at the entrance end of the bag according to the different product configurations.
5. Packaging we adopt wooden case as package type. It's suitable for long-distance transport.According to customers' special demand, we could adopt sheet iron case and so on.
6. Packing neat and good looking
